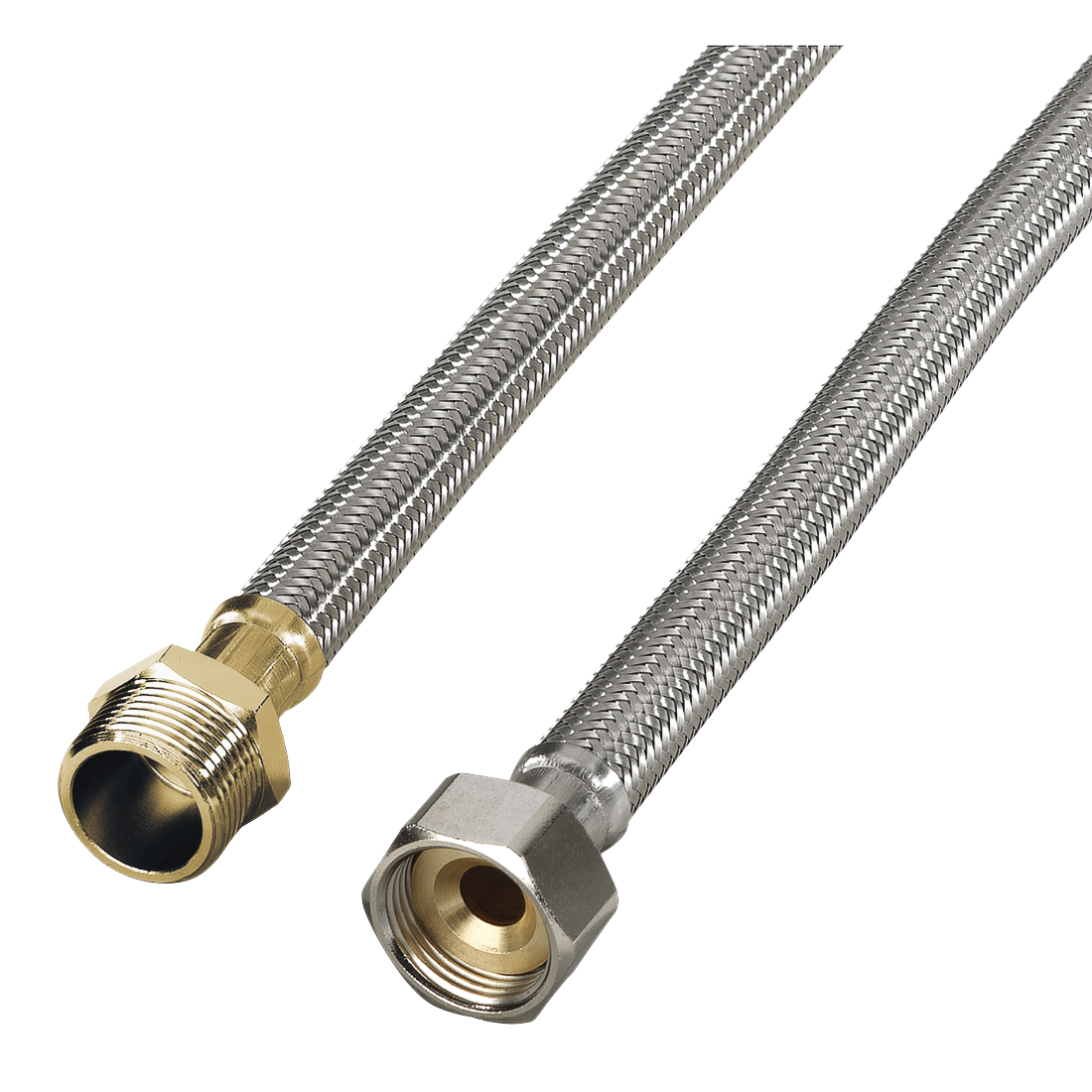

Reinforced Supply Hose Extension, 3 m

Item Type : Hose Extension
47,99 EUR SRP
VAT included

More product information

  • For the extension of supply hoses if the location of the appliance and water connection are too far away from each other
  • Extreme kink resistance, excellent flexibility and high flow capacity
  • Offers the greatest possible protection against water damage for washing machines, dishwashers or connections to drinking water purification systems (ice cube makers, boilers, side-by-side refrigerators, etc.)
  • Also ideally suited for extending fixed-connection supply hoses with water stop devices (Aquastop)
  • High-quality woven material made from rust-free stainless steel wire
  • DVGW type examination certificate: DW-0304BT0257
  • Approval as a hose line for drinking water installation (Group I) with DVGW tests W 543, W 270 and BGA KTW-A 0304 confirming excellent microbiological purity and mechanical resilience

Length

3 m 2 m 1 m
Quality based on German standards

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

What's in the Box

- 1 reinforced supply hose extension

Technical Specs

Nominal Diameter/mm 1 3/4" (DN:20), 26.9 mm
Nominal Diameter/mm 2 3/4" (DN:20), 26.9 mm
Type of Connection Connection Nut, straight, Threatfitting External Threat
Burst Pressure 90
Material Steel Wire Braiding (Rustproof)
Maximum Operating Pressure 10
Maximum Temperature 93 °C
Inner Diameter 13
Length 3 m
Outside Diameter 17
Usage Dishwasher
